General SpecificationsBrand Name：X-HON

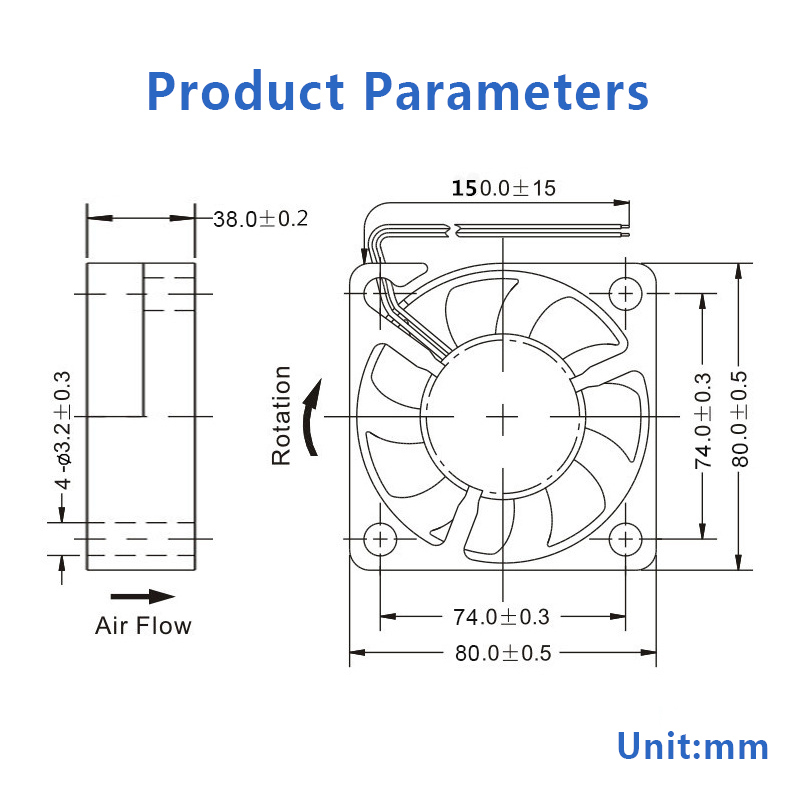

Size：80x80x38mm
Weight：185g
Frame & Impeller：Plastic material（UL94V-0）
Speed：4500~8500RPM
Air flow：63.8~119.6CFM
Noise：49.5~66.0dBA
Function Options：FG,RD, PWM,Auto Restart, Polarity Protection
|
MODEL
|
SIZE |
VOLTAGE（V） |
CURRENT（A） |
SPEED（RPM） |

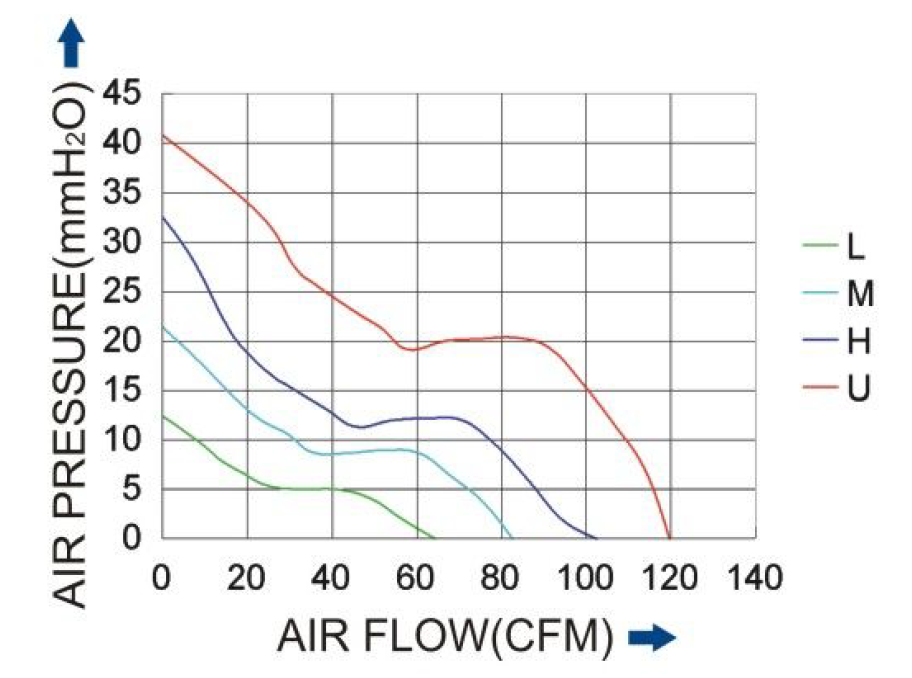

AIR FLOW（CFM） |
PRESSURE（mmH2O) |
NOISE(dBA) |
WEIGHT(g) |
| HXD8038 |
80X80X38 |
12 |
0.50 |
4500 |
63.8 |
12.4 |
49.5 |
185 |
| 1.00 |
6000 |
82.6 |
21.4 |
58.0 |
| 2.00 |
7500 |
102.4 |
32.5 |
63.5 |
| 2.80 |
8500 |
119.6 |
40.8 |
66.0 |
| 24 |
0.30 |
4500 |
63.8 |
12.4 |
49.5 |
| 0.50 |
6000 |
82.6 |
21.4 |
58.0 |
| 1.00 |
7500 |
102.4 |
10.4 |
44.5 |
| 1.50 |
8500 |
119.6 |
32.5 |
58.0 |
| 48 |
0.20 |
4500 |
63.8 |
12.4 |
49.5 |
| 0.30 |
6000 |
82.6 |
21.4 |
58.0 |
| 0.50 |
7500 |
102.4 |
32.5 |
63.5 |
| 0.80 |
8500 |
119.6 |
40.8 |
66.0 |
Expected Life:
Ball Bearing 70,000hrs (40°C)
Sleeve Bearing 30,000hrs (40°C)
Temperature Range:
Operating temperature -10'C-70°C (Non-condensing)
Storage temperature -40°C-75°C(Non-condensing)
Safety Standards:RoHS, CE,FCC
Bearing type：
1.Sleeve bearing(lower price):The sleeve was stalbe performance and easy installation Lifetime: 30,000h
2.Ball bearing(high price):it is charactered with high quality,low noise level and easy installation. Lifetime: 50,000h
Wire：
1.Auto-restart function
2.Stopage Alarm function(RD function with 3 lead wires)
3.Speed detection function( FG function with 3 lead wires)
4.Temperature control speed function(PWM function with 4 lead wires)
5. RD, FG, PWM(5 lead wires)
