MODEL
|
SIZE |
VOLTAGE（V） |
CURRENT（A） |
SPEED（RPM） |

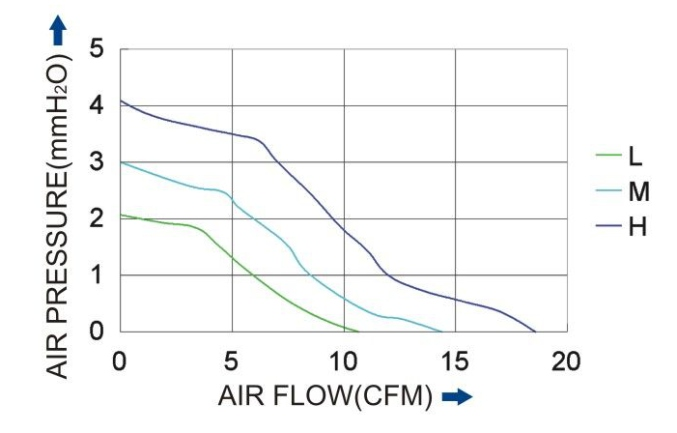

AIR FLOW（CFM） |
PRESSURE（mmH2O) |
NOISE(dBA) |
WEIGHT(g) |

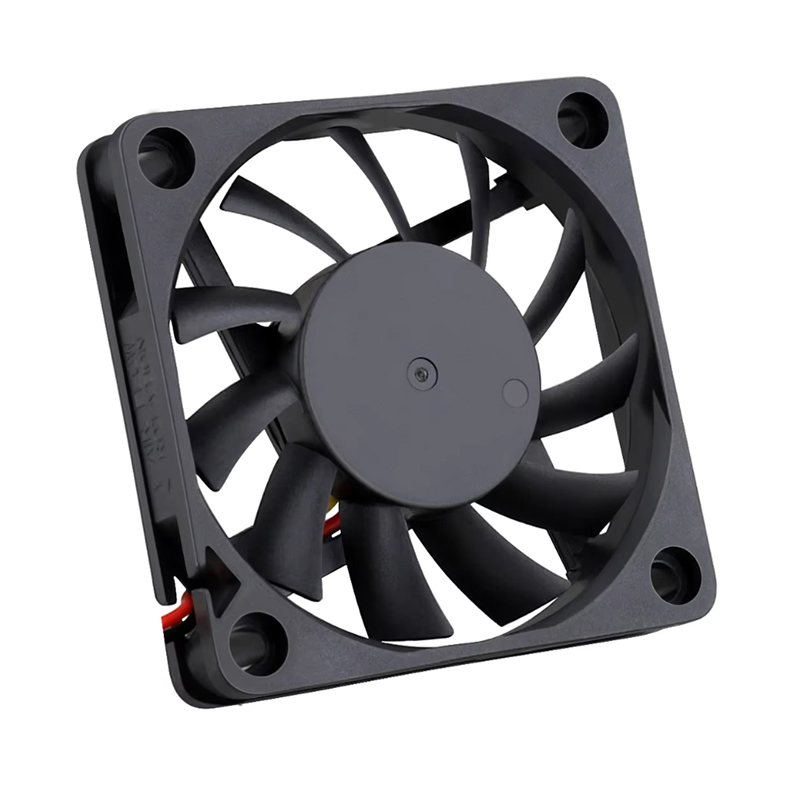

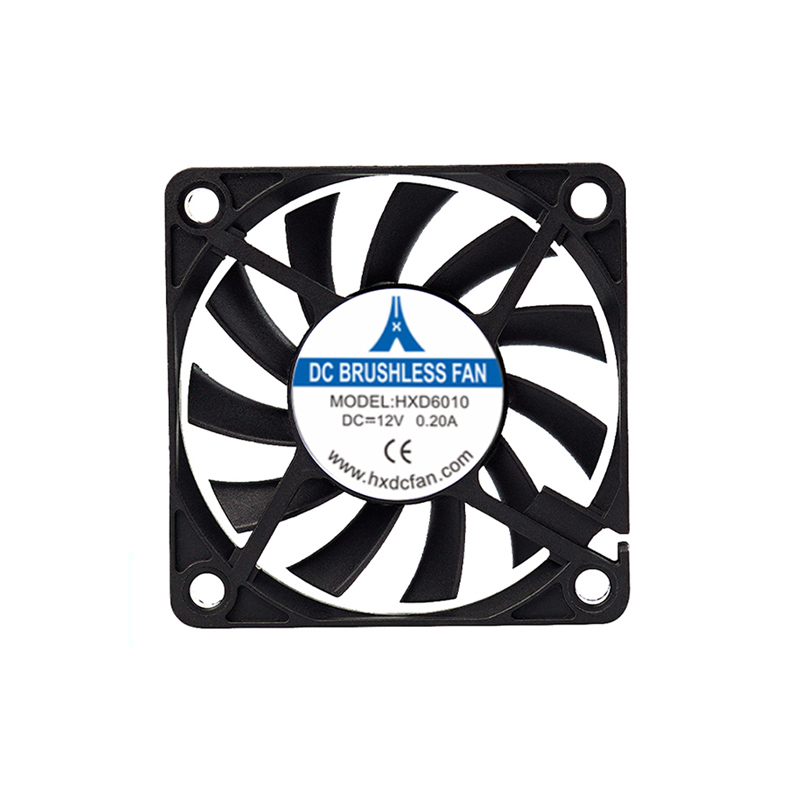

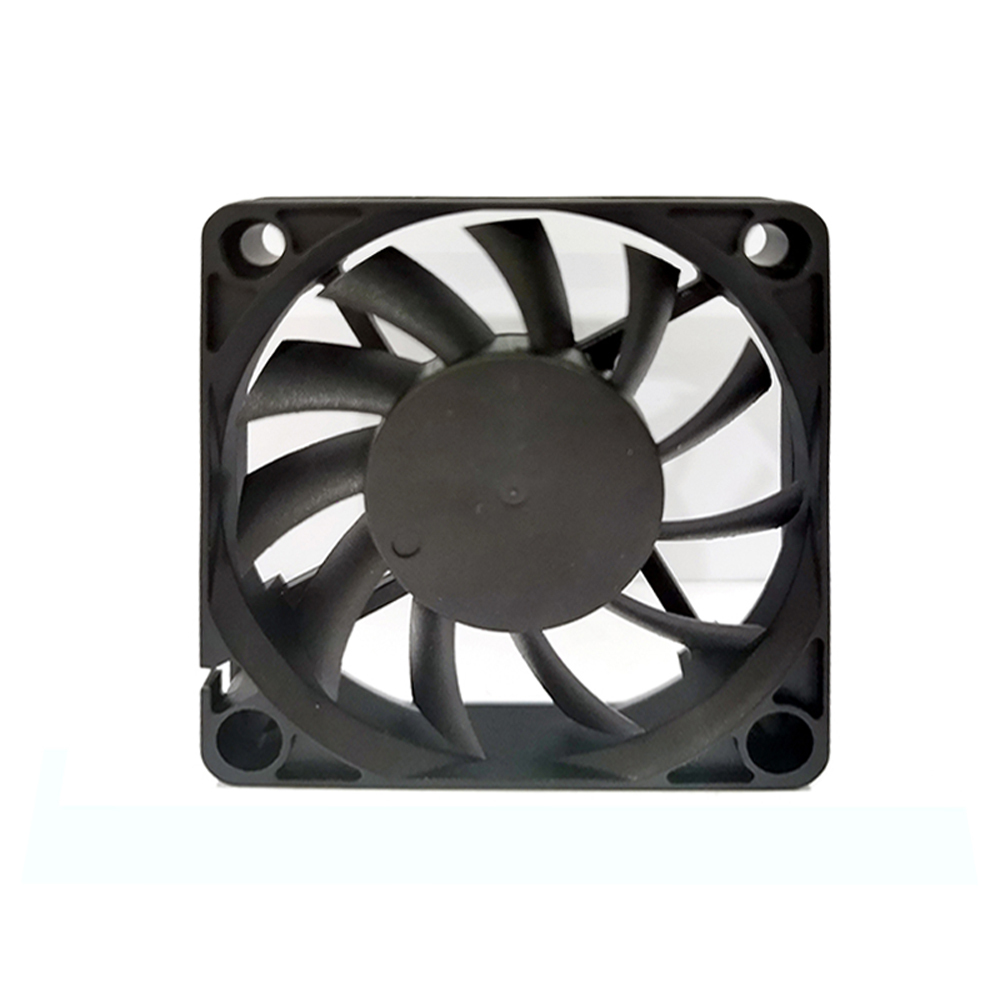

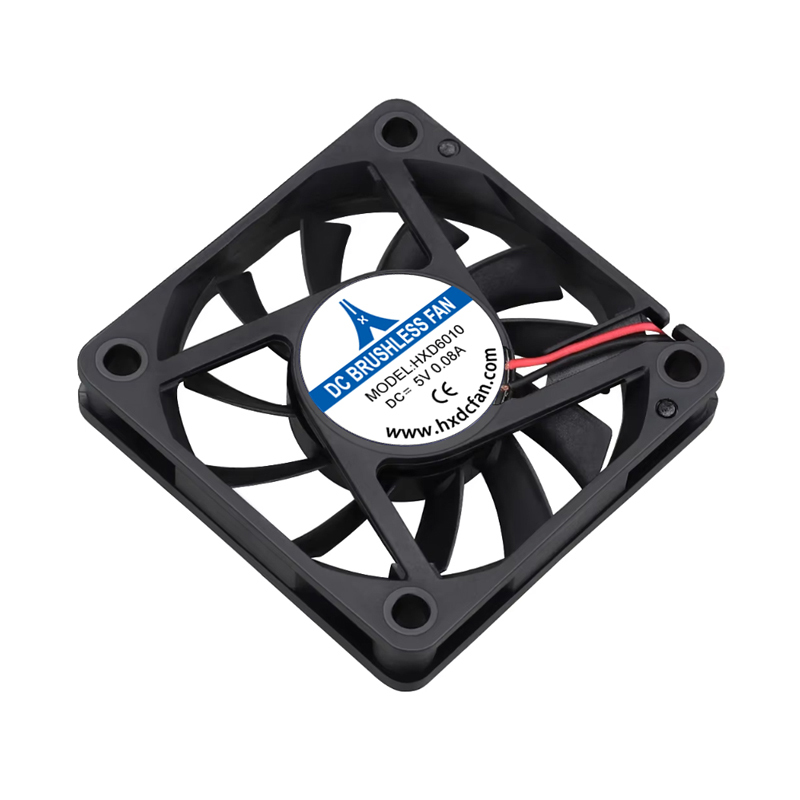

| HXD6010 |
60X60X10 |
5 |
0.15 |
2500 |
10.2 |
1.9 |
22.5 |
24 |
| 0.30 |
3000 |
10.7 |
2.1 |
23.0 |
| 0.50 |
4000 |
14.4 |
3.0 |
28.5 |
| 12 |
0.13 |
3000 |
10.7 |
2.1 |
23.0 |
| 0.23 |
4000 |
14.4 |
3.0 |
28.5 |
| 0.32 |
5000 |
18.6 |
4.1 |
35.0 |
| 24 |
0.09 |
3000 |
10.7 |
2.1 |
23.0 |
| 0.13 |
4000 |
14.4 |
3.0 |
28.5 |
| 0.18 |
5000 |
18.6 |
4.1 |
35.0 |
Expected Life:
Ball Bearing 70,000hrs (40°C)
Sleeve Bearing 30,000hrs (40°C)
Temperature Range:
Operating temperature -10'C-70°C (Non-condensing)
Storage temperature -40°C-75°C(Non-condensing)
Safety Standards:RoHS, CE,FCC
Bearing type：
1.Sleeve bearing(lower price):The sleeve was stalbe performance and easy installation Lifetime: 30,000h
2.Ball bearing(high price):it is charactered with high quality,low noise level and easy installation. Lifetime: 50,000h
Wire：
1.Auto-restart function
2.Stopage Alarm function(RD function with 3 lead wires)
3.Speed detection function( FG function with 3 lead wires)
4.Temperature control speed function(PWM function with 4 lead wires)
5. RD, FG, PWM(5 lead wires)
